لیست لوازم یدکی لوازم یدکی کنترلر AUMA Matic AM01.1 – AM02.1
Spare Part AUMA matic AM

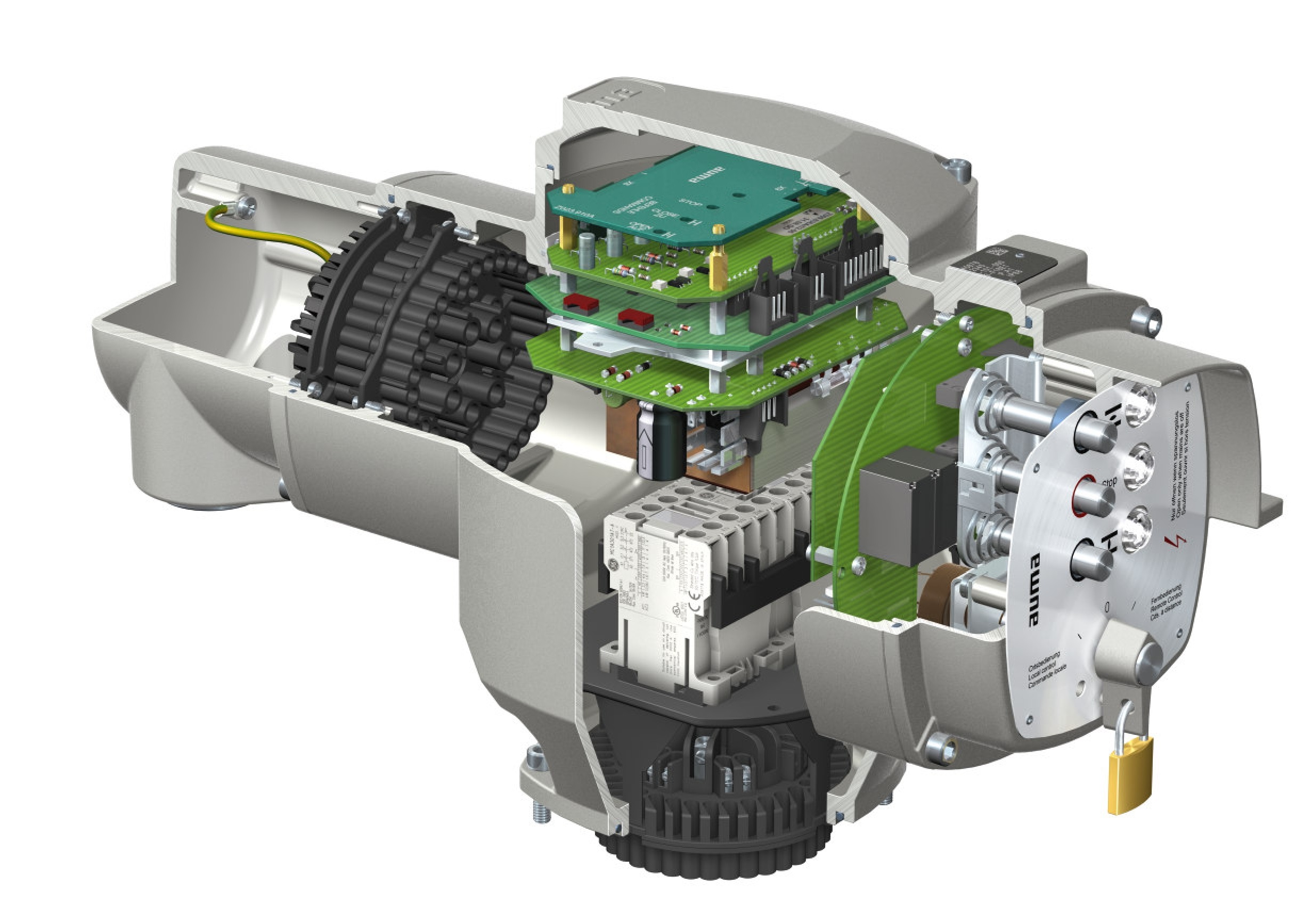

AUMA Matic AM01.1-AM02.1 spare parts list
| Type | Description | Ref No | Type | Description | Ref No |
| Sub-assembly | Logic board | 009.0 | Housing | 001.0 | |
| Sub-assembly | Adapter board | 013.0 | Sub-assembly | Local controls | 002.0 |
| Sub-assembly | Cover | 500.0 | Sub-assembly | Selector switch | 002.5 |
| Sub-assembly | Socket carrier (complete with sockets) | 501.0 | Sub-assembly | Signal and control board | 003.0 |
| Sub-assembly | Pin carrier without pins | 502.0 | Primary fuse F1/F2 | 003.1 | |
| Sub-assembly | Socket for controls | 503.0 | Fuse cover | 003.2 | |
| Sub-assembly | Socket for motor | 504.0 | Carrier for contactors | 004.0 | |
| Sub-assembly | Pin for controls | 505.0 | Sub-assembly | Power supply unit | 006.0 |
| Sub-assembly | Pin for motor | 506.0 | Secondary fuse F3 | 006.1 | |
| Sub-assembly | Cover for electrical connection | 507.0 | Secondary fuse F4 | 006.2 | |
| Sub-assembly | Switchgear | 508.0 | Sub-assembly | Interface board | 008.0 |
| Padlock | 509.1 | Interface board | 008.1 | ||
| Set | Seal kit | S | Cover plate for interface board | 008.2 |
لطفاً هنگام سفارش قطعات یدکی نوع عملگر و شماره سفارش Com No و یا Order No (نوشته شده روی پلاک عملگر برقی ) را اعلام فرمایید.
